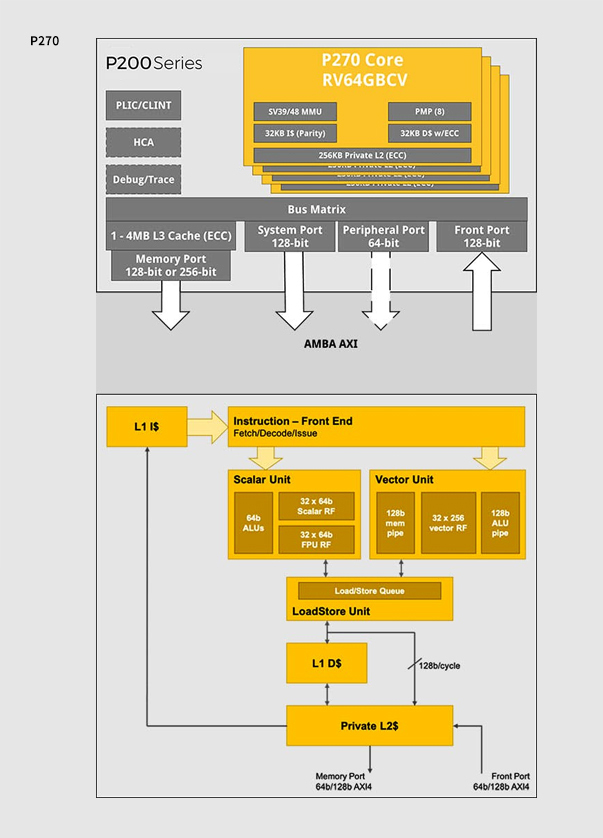

256-bit vector length processor

• Variable length operations, up to 256-bits of data per cycle, with dynamic vector length configuration
• Ideal balance of control and data parallel compute

Performance

• 5.75 CoreMarks/MHz
• 3.25 DMIPS/MHz
• SpecINT 2K6 = 4.6

Scalar processing built from U7 series core

• Multi-layer Caching support for optimum data movement
• Stride Prefetcher
• Virtual memory support, up to 48-bit addressing

High performance, flexible connectivity to SoC peripherals

Multi-core processor configuration with up to 4-cores

Implements RISC-V Vectors v1.0-rc version

Dual issue scalar unit runs concurrently with vector unit

Key vector unit attributes

• VLEN = 256. DLEN = 128 (datapath width). ELEN = 64 (datatypes)
• Separate memory and ALU pipelines for concurrent operation
• Vector operations, decoded and Queued in Vector Unit for parallel operation of Scalar and Vector units

Vector ALU

• 128b ALU can perform 2x64b, 4x32b, 8x16b, 16x8b ops/cycle
• Integer and Floating point data types supported

Vector Loads/Stores are 128b/cycle

• L2 cache treated as primary memory
• Load from L1 cache, initiates L2 cache load in parallel, minimizing L1 cache miss impact

Breakthrough RISC-V performance

• 3x Performance per mm2 compared to Cortex-A75
• Performance >8.6 SpecINT2k6/GHz, Higher single threaded performance than Cortex-A75

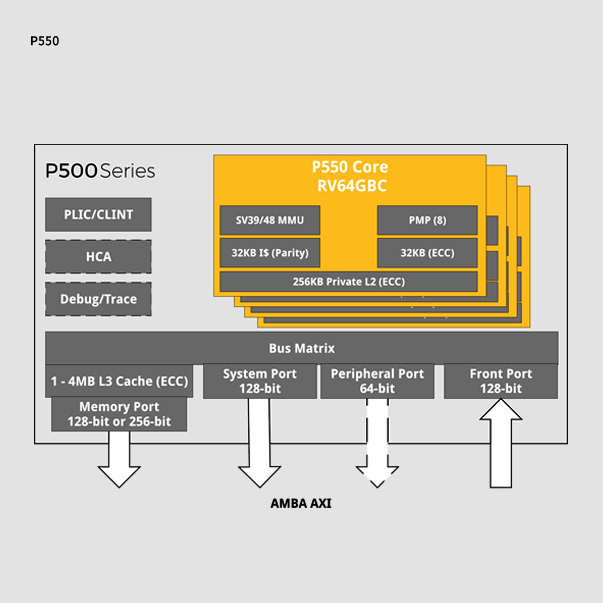

P550 Core Architectural Features

• RV64GBC capable core with Sv39/Sv48 Virtual Memory Support
• Three Issue, out-of-order Pipeline tuned for scalable performance
• Private L2 Caches and Streaming Prefetcher for improved memory performance
• SECDED ECC with Error Reporting

Enabling next generation applications

• Cache stashing to L3 for tightly coupled accelerators
• Mix+Match capable for real-time deterministic workloads
